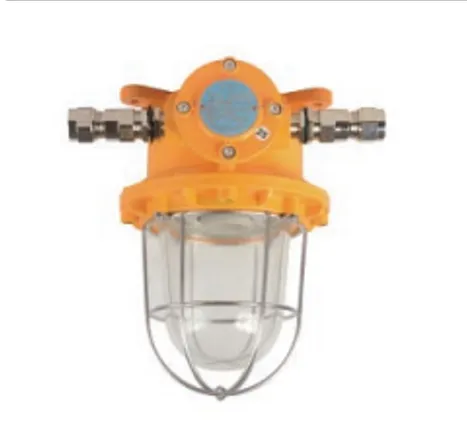

Explosion-Proof Incandescent Light CFD4a

Explosion-proof marking: Ex d IIC T4

Rated voltage: 24–220 V

Rated power: 60 W

Lamp holder: E27

Light source: incandescent

Protection class: IP65

Housing: aluminium alloy casting, toughened glass lampshade, stainless steel guard

Cable entry: G3/4 tube thread or cable gland type

Cable outer diameter: Ø11–13 mm

Weight: 6 kg

Dimensions:

Overall height: 235 mm

Guard diameter: 166 mm

Mounting: 3 × Ø9 mm holes on Ø160 mm PCD

Certification:

CCS (China Classification Society) type approval

ATEX approval

Conforms to GB 3836 and GB 12045

Other specifications, ratings, or lengths of this series are available on request — please send us an RFQ with your required parameters.
