Capacitor, ELECTRONICONE62.C58-502E10
| Item code | E62.C58-502E10 |
|---|---|
| Sourcing origin | Shanghai, China |
| Availability | Inquiry-based — confirmed per quotation |
Request a quotation for this part
Send your inquiry with details, quantity, and target timing. TMH coordinates sourcing, quotation, forwarding, and export-side communication.
About this part

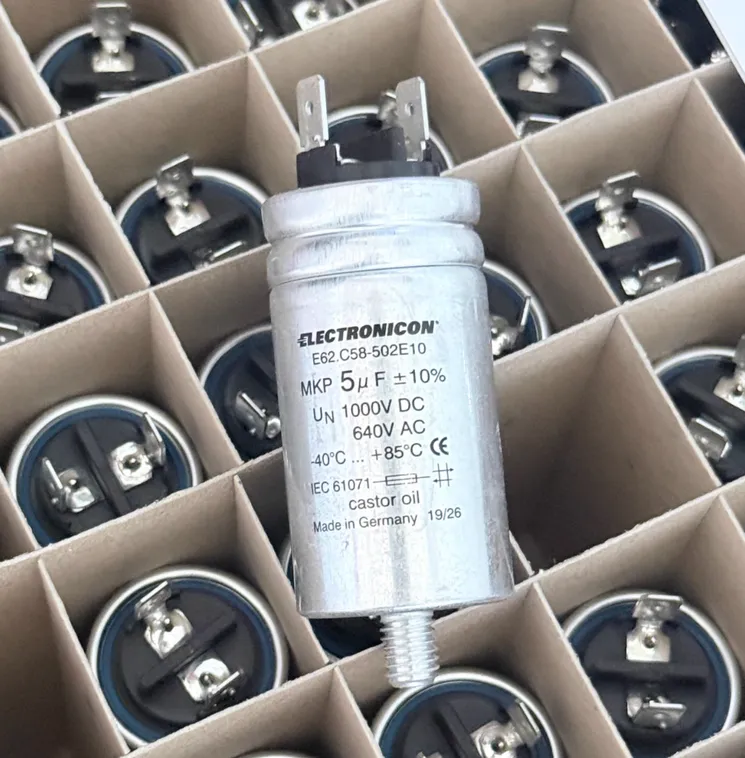

Electronicon E62.C58-502E10 metallized polypropylene (MKP-1) AC/DC capacitor for general use in power electronics, also for non-sinusoidal voltages and currents.
Capacitance: 5 µF ±10 %
Rated voltage: 1000 V DC / 640 V AC
Max. rms voltage (sinusoidal): 450 V
Non-recurrent surge voltage: 1500 V
Max. current: 10 A rms, peak 0.26 kA, surge 0.8 kA
Operating temperature: −40 °C … +85 °C
Dimensions: Ø30 × 58 mm (case), terminals 15 mm
Terminals: tab connectors 6.3 × 0.8 mm, M8×10 base mounting stud
Construction: aluminium can, self-healing, overpressure break-action mechanism (BAM), liquid impregnant, PCB-free
Standard: IEC 61071
Weight: approx. 0.05 kg
Other specifications, ratings, or lengths of this series are available on request — please send us an RFQ with your required parameters.
