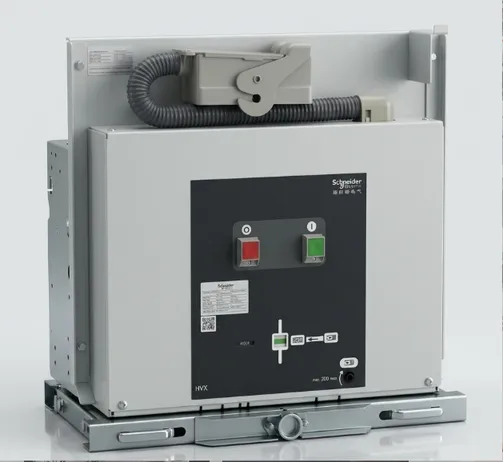

Vacuum Circuit Breaker Schneider HVX12-25-06/K, 12kV, 630A, Spring Operating MechanismHVX12-25-06-K
| Item code | HVX12-25-06-K |
|---|---|
| Sourcing origin | Shanghai, China |
| Availability | Inquiry-based — confirmed per quotation |
Request a quotation for this part
Send your inquiry with details, quantity, and target timing. TMH coordinates sourcing, quotation, forwarding, and export-side communication.
About this part
Vacuum circuit breaker Schneider Electric type HVX12-25-06/K with spring operating mechanism.
Technical data:
- Rated voltage (Ur): 12 kV
- Rated current (Ir): 630 A
- Short-circuit breaking current (Isc): 25 kA
- Rated frequency: 50/60 Hz
- Operating sequence: O-0.3s-CO-3min-CO
- Impulse withstand voltage (Up): 75 kV
- Control voltage (Uop): 110 V d.c.
- Motor voltage: 110 V d.c.
- Short-time withstand duration (tk): 3 s
- Endurance classes: E2, M2
- Temperature class: -25°C
- Standard: IEC 62271-100
Other specifications, ratings, or lengths of this series are available on request — please send us an RFQ with your required parameters.
