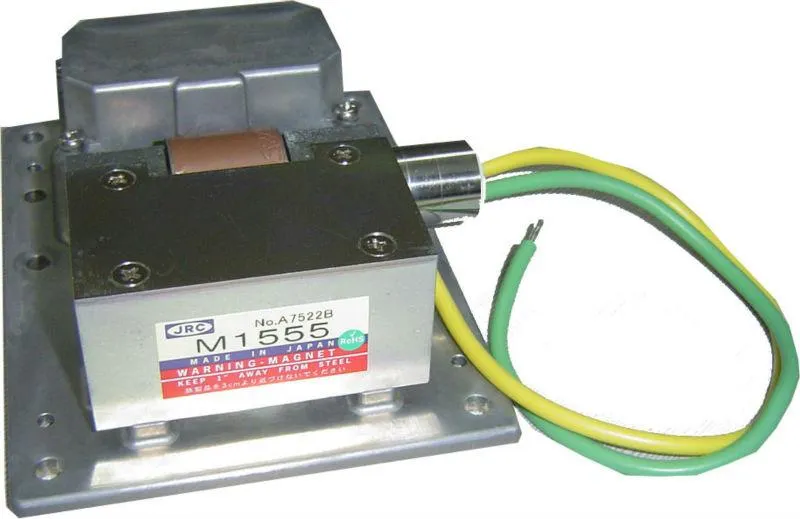

S-Band Magnetron M1555, 30kWM1555/JRC
| Item code | M1555/JRC |
|---|---|
| Sourcing origin | Shanghai, China |
| Availability | Inquiry-based — confirmed per quotation |
Request a quotation for this part
Send your inquiry with details, quantity, and target timing. TMH coordinates sourcing, quotation, forwarding, and export-side communication.
About this part
S-band magnetron M1555 by JRC / New Japan Radio Co., Ltd. (now Nisshinbo Micro Devices).
Technical specifications:
- Frequency range: 3040-3060 MHz (typical 3043 MHz)
- Peak output power: 30 kW (min. 25 kW)
- Heater: 6.3V / 1.3A typical; preheat time 180s
- Peak anode voltage: 7.2-8.5 kV; peak anode current 6-12 A
- Duty cycle max: 0.001; pulse duration 0.07-1.0 μs
- Dimensions: 165.1 × 150 × 55 mm max (mounting plate), lead length 250mm min
- RoHS compliant
- Note: contains strong permanent magnet — keep min. 1" away from steel; special handling required for air freight
Other specifications, ratings, or lengths of this series are available on request — please send us an RFQ with your required parameters.
