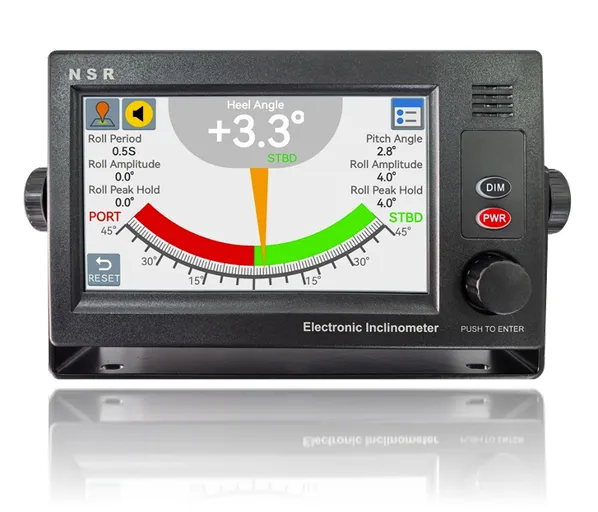

NSR NEI-3000 Electronic Inclinometer, complete setNEI-3000
| Item code | NEI-3000 |
|---|---|
| Sourcing origin | Shanghai, China |
| Availability | Inquiry-based — confirmed per quotation |
Request a quotation for this part
Send your inquiry with details, quantity, and target timing. TMH coordinates sourcing, quotation, forwarding, and export-side communication.
About this part
Measures and displays heel angle, roll period, roll amplitude and pitch angle. Includes log of heel angle (last 3 min) and roll amplitude (last 30 min).
Specifications:
- Heel Angle: ±90°, accuracy ±1°
- Roll Amplitude: ±90°, accuracy ±1°
- Roll Period: 4-40 sec, accuracy ±1s
- Pitch Angle: ±90°, accuracy ±1°
- O/S: Android
- LCD Display: 7 inch touch screen, 1024×600
- Interface: I/O sentence (IEC 61162-1 & IEC 61162-2)
- Power Supply: DC 24V (range 9V-36V)
- Power Consumption: <10W
- Display Unit Size: 145(H) × 264(W) × 83(D) mm
- Weight: 1.3 kg (Display Unit)
- IP Grade: IP22
Included in set:
- Display Unit: NEI-3000D (1 pc)
- Power Unit: NEI-3000P (1 pc)
- Sensor Unit: NEI-3000S (1 pc)
- Installation materials (1 set)
- CCS certificate
Standards: IMO MSC.363(92), IMO MSC.302(87), IEC 61162-1, IEC 61162-2, IEC 62923-1, IEC 62923-2, IEC 62288, ISO 19697
Optional: Flush Mount Bracket
Maker: NSR / New Sunrise Co., Ltd.
