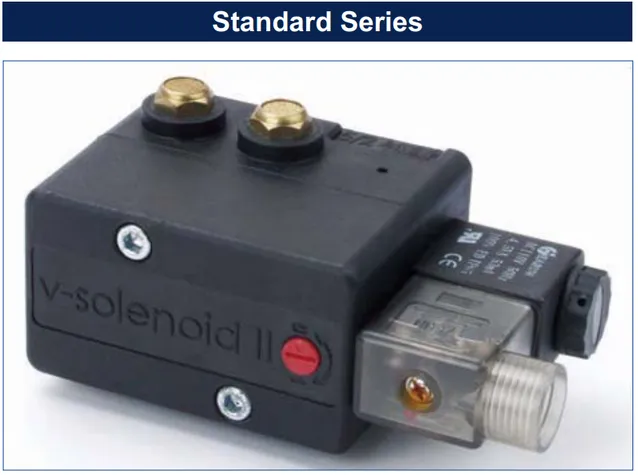

NAMUR Solenoid Valve V-Solenoid II VS-SSE0-DC024, 5/2-3/2, 24VDC, Stainless (Corrosion Resistant)VS-SSE0-DC024
| Item code | VS-SSE0-DC024 |
|---|---|
| Sourcing origin | Shanghai, China |
| Availability | Inquiry-based — confirmed per quotation |
Request a quotation for this part
Send your inquiry with details, quantity, and target timing. TMH coordinates sourcing, quotation, forwarding, and export-side communication.
About this part
Die Erste V-Solenoid II NAMUR solenoid valve, type VS-SSE0-DC024 (Standard Series, corrosion-resistant version with stainless steel port inserts and armature components). Direct NAMUR mounting per VDI/VDE 3845 for process valve actuators. Convertible 5/2 or 3/2 function via rotary sealing plate — suitable for both double-acting and single-acting actuators. Flow Cv > 1.1 (approx. 1100 L/min), operating pressure 2.4-8.3 bar (35-120 psi), response 20 ms opening / 40 ms closing. Coil 24VDC, 4.8 W, 100% continuous duty, insulation class F, IP65, DIN connector. Ports: 1/4" NPT supply, 1/8" NPT exhaust. Valve body reinforced polyamide; poppet valve design with dual static rolling diaphragm seals. Operating temperature -20°C to +60°C. Media: compressed air (lubricated or unlubricated), instrument air, nitrogen.
Other specifications, ratings, or lengths of this series are available on request — please send us an RFQ with your required parameters.
